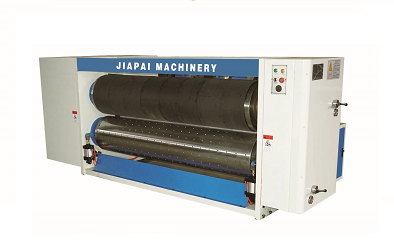

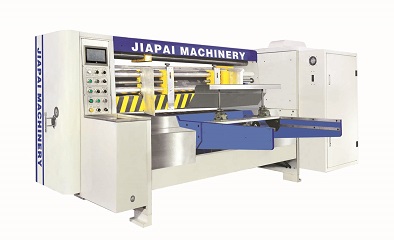

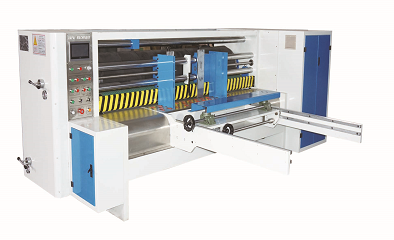

Automatic rotary die cutter(soft cutting type)
Main feature
●It is
adopted high accurate lead edge feeding system, it is controlled by servo motors
and driver system, and both and imported from YASKAWA JAPAN, It is using vacuum
adsorb (suction) and supply air system, wind pressure adjustable. Option for automatic
kicker feeder and chain feeder.
●Be equipped
with flexible feeding and skip feeding function.
●The die
cutting position and baffles are adjusted by PLC control and touch screen
display, fast and accuracy.
●it is
equipped with speed different device, which can be ensure the die cutting
accurate without change.
●The whole electrical
apparatus elements are adopted some well-know brand, like, Schneider, Yaskawa, Siemens,
Delta, CHNT and CUE anvil covers of American.
Parameter
Model |
MR116 |
MR120 |
MR125 |
Max. speed(sheet/min) |
160 |
160 |
160 |
Economic speed(sheet/min) |
100-120 |
100-120 |
100-120 |
Max. feeding size(mm) |
1250*1700 |
1250*2100 |
1250×2600 |
Min feeding size(mm) |
350*550 |
350*550 |
350*550 |
Max. die cutting size(mm) |
1250*1600 |
1250*2000 |
1250×2500 |
Thickness (mm) |
2-12 |
2-12 |
2-12 |
Main power(Kw) |
5.5 |
7.5 |
11 |
Model |
MR216 |
MR220 |
MR225 |
Max. speed(sheet/min) |
160 |
160 |
160 |
Economic speed(sheet/min) |
100-120 |
100-120 |
100-120 |
Max. feeding size(mm) |
1380*1700 |
1380*2100 |
1380×2600 |
Min feeding size(mm) |
400*600 |
400*600 |
400×600 |
Max. die cutting size(mm) |
1380*1600 |
1380*2000 |
1380×2500 |
Thickness (mm) |
2-12 |
2-12 |
2-12 |
Main power(Kw) |
5.5 |
7.5 |
11 |
Model |
MR320 |
MR325 |
MR328 |
Max. speed(sheet/min) |
160 |
160 |
160 |
Economic speed(sheet/min) |
80-100 |
80-100 |
80-100 |
Max. feeding size(mm) |
1630*2100 |
1630×2600 |
1630*2900 |
Min feeding size(mm) |
500*600 |
500×600 |
500*600 |
Max. die cutting size(mm) |
1630*2000 |
1630×2500 |
1630*2800 |
Thickness (mm) |
2-12 |
2-12 |
2-12 |
Main power(Kw) |
7.5 |
11 |
18 |
