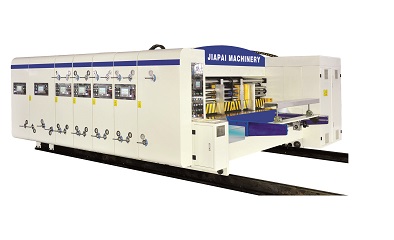

Flexo printing slotting and rotary die cutting machine
Main feature
●The
whole machine is made according to reliable, saving energy and safety. It is
facility to operate and change order rapidly.
●PLC control, frequency
conversion position adjustment mechanism. Touch screen and electric control
dual system; Controllable ink roller automatic intelligent elevating, automatic
memory reset after cleaning of print plate, individualized trimming, automatic
stand by for new order.
●Main driving gears are made of
high quality alloy steel (20CrMnTi) grinded under high temperature with 6 grade
hardness of HRC58-62.
●Touch screen setting: to
control and position of each print plate and slotting head/knife, to set
production speed, plus count and alert function.
●Pulling feed wheel
self-locking and quick adjusting function, with no out force to assure
precision of feeding shaft..
●The transmission system
adopts spraying anti-squirt device, circulating lubrication, with anti-leak-age
mechanism.
●Pneumaticcylinder locking
between units, plus strong ground clutching and self-locking mechanism to
assure the stableness of the whole machine.
●Option for vacuum transport, chamber doctor
blade system and rapidness drying device.
Parameter
Model |
YKM1224 |
YKM1424 |
YKM1624 |
Max. Machine Speed(sheet/min.) |
200 |
180 |
160 |
Max. Feeding Size(mm) |
1200X2500 |
1400X2500 |
1600X2500 |
Min. Feeding Area(mm) |
300*550 |
350X600 |
500X650 |
Skip Feeding Area(mm) |
1400X2500 |
1600X2500 |
1800X2500 |
Feeding depth(mm) |
2-12 |
2-12 |
2-12 |
Max. Printing Area(mm) |
1180X2450 |
1380X2450 |
1580X2450 |
Print plate Depth(mm) |
7.2 |
7.2 |
7.2 |
Min. slotting depth (Positive) |
140*140*140*140 |
140*140*140*140 |
140*140*140*140 |
Min. slotting depth (Reverse) |
220*60*220*60 |
220*60*220*60 |
220*60*220*60 |
Max Die Cutter size(mm) |
1200X2400 |
1400X2400 |
1600X2400 |
