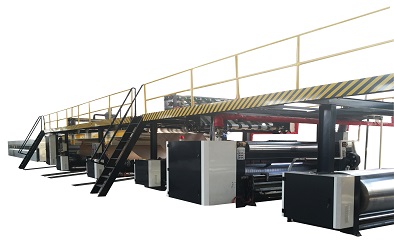

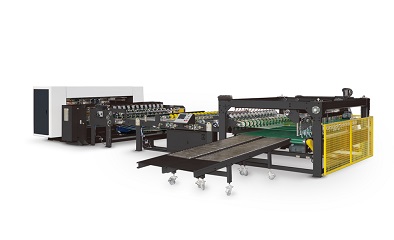

2ply,3ply or 5ply corrugated paperboard production line

Main feature
The 2 layer, 3 layer, 5 layer,7layer and multi-function corrugated cardboard production line mainly consist of the following equipments: Mill roll stand, Pre-conditioner, Pre-heater, Auto-splicer, Single facer, Conveying span bridge, Multi-ply pre-heater, Glue application machine, Double facer, Slitter scorer, Cutoff, Conveyer and Stacker, Glue making system and Electric control system etc.

Parameter

Max. production speed

80-200m/min.

Paperboard width

1600-2500mm

Type of corrugating roll

A, C, B, E, F as per customer’s option

Height of flute

provided by the buyer and to be proved by the seller.

Pressure of steam

8~10Bar (actual input steam pressure)

Consumption of steam

1.5-2.0ton/hr

Paper for production

flute paper: flute paper: 90-180g/m2 (can be lowest to 80g/sqm, depends on material); Facer paper: 120-250 g/m2

Power (apr.):

120-450KW;

Length of the corrugating line:

55-95meters.
