Rotary die cutting machine

  • Chain feeding rotary die cutter
  • Chain feeding rotary die cutter
  • Chain feeding rotary die cutter
  • Chain feeding rotary die cutter
Chain feeding rotary die cutterChain feeding rotary die cutterChain feeding rotary die cutterChain feeding rotary die cutter

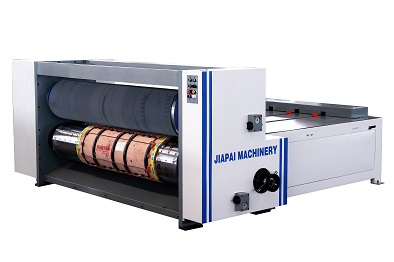

Chain feeding rotary die cutter

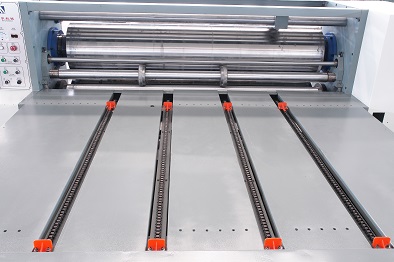

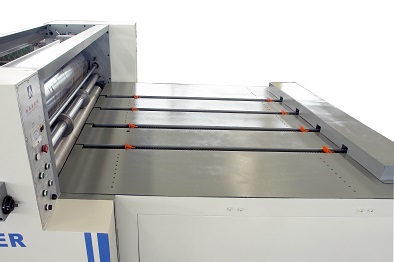

  • Chain feeding
  • Semi-automatic feeding
  • Economic rotary die cutter
  • Product description: Chain feeding rotary die cutter
  • INQUIRY
Features
Semi-auto chain feeding corrugated cardboard rotary die cutter, is widely apply to the die cutting of corrugated cardboard packaging and color box packaging includes some various special-shaped packaging.
High efficiency, high die-cutting accuracy, energy saving and safety are the advantages of this machine.
This is the third generation of rotary die-cutting machine, equipped with imported of polyurethane felt, guarantee a long life time up to 10 million times
Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord even if the polyurethane felt is worn-out.
The feeding system equipped with linkage self-lock device, which are convenient for the workers' operation.
The slotting, corner cutting, creasing and punching will be accomplished in a lump.
The main structure and frame is made of high quality cast iron.
The die cutting roller is made of the high quality steel with the thickness of 30mm, and chrome plated, as well balance adjustment.
Die cutting roller cylinder type auto separation unit can increase wear of rubber sleeve.
Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.

Parameter

Model

MR120

MR125

MR128

Max. speed(sheet/min)

140

120

140

Economic speed(sheet/min)

80-100

80-100

80-100

Max. feeding size(mm)

1250*2100

1250×2600

1250*2900

Min feeding size(mm)

400*600

400×600

400*600

Max. die cutting size(mm)

1250*2000

1250×2500

1250*2800

Thickness (mm)

2-11

2-11

2-11

Main power(Kw)

5.5

7.5

11
